Key Characteristics of Auger Recombination Coefficient in 4H-SiC and Its Impact on Device Physics +

Conductive and semi-insulating 4H-SiC wafers are available for physical researches. For detailed specifications and inquiries, please contact: [email protected]

Bipolar devices based on 4H-SiC, such as PIN diodes and IGBTs, achieve lower on-state resistance than unipolar devices through the conductivity modulation effect, making them suitable for high-voltage applications exceeding 10 kV. One of the ultimate limiting factors for device performance is the minority carrier lifetime, which is governed by the combined effects of Shockley-Read-Hall (SRH) recombination, surface recombination, radiative recombination, and Auger recombination. When crystal defect concentrations (e.g., Z₁/₂ centers) are minimized through process optimization, Auger recombination becomes the critical process determining carrier lifetime under high-injection conditions. Therefore, accurately understanding and quantifying the characteristics of the Auger recombination coefficient (C) is crucial for predicting device performance limits and optimizing device design.

1. Non-Constant Nature of the Auger Recombination Coefficient in 4H-SiC

Traditionally, the Auger recombination coefficient has often been approximated as a constant independent of carrier concentration and temperature. However, recent studies have clearly overturned this assumption, revealing that Auger recombination coefficient is a strong function of both carrier concentration and temperature.

1.1 Concentration Dependence of Auger Recombination Coefficient under High Injection

Tanaka et al. (2023) investigated low-doped n-type 4H-SiC epitaxial layers using time-resolved free carrier absorption (TR-FCA) measurements. They found that under high-injection conditions (carrier concentration N > 5×10¹⁸ cm⁻³), the Auger recombination coefficient decreases significantly with increasing injection concentration. The quantitative relationship was determined to be C = 7.4 × 10^-19 N^-0.68cm⁶s^-1. This power-law relationship was derived primarily by analyzing experimental data of Auger lifetime (τ_Auger) versus carrier concentration (N), fitted according to the theoretical model τ_Auger ∝ 1/(C * N²). This phenomenon is primarily attributed to the screening of the Coulomb enhancement effect by high carrier concentrations. The study also noted that even with the introduction of high-density traps via proton implantation, the contribution of trap-assisted Auger recombination (TAAR) to the Auger coefficient is negligible, indicating that TAAR is not a primary mechanism affecting Auger recombination coefficient in 4H-SiC.

Fig. 1 Variation of Auger lifetime (τ_Auger) with excited carrier concentration (N). Data points show τ_Auger decreasing with increasing N. The fitted curve (dashed line) reveals the dependence C = 7.4 × 10^-19 N^-0.68cm⁶s^-1.

1.2 Temperature Dependence of Auger Recombination Coefficient in Heavily Doped 4H-SiC

Zhang et al. (2025) systematically studied Auger recombination at elevated temperatures in heavily nitrogen-doped (~5×10¹⁸ cm⁻³) n-type 4H-SiC using time-resolved photoluminescence (TR-PL). They found that under high-injection levels, carrier decay accelerates with increasing temperature, confirming the dominance of Auger recombination. By analyzing data at the highest injection concentrations, they established a quantitative relationship for the temperature dependence of the Auger coefficient, expressed as C = 3.2 × 10^-34T^1.19cm⁶ s^-1. This trend is interpreted as a manifestation of the phonon-assisted Auger recombination mechanism: in indirect bandgap 4H-SiC, increased temperature enhances phonon scattering, relaxing the momentum conservation condition and thereby promoting the Auger recombination process.

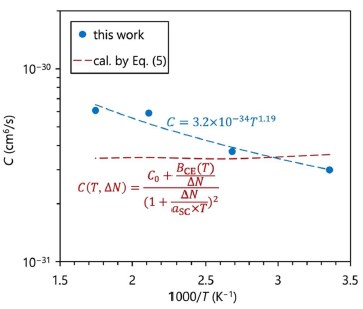

Fig. 2 Relationship between Auger recombination coefficient (C) and temperature (T). Experimental data show C increasing with T. The fitted curve indicates C = 3.2 × 10^-34T^1.19cm⁶ s^-1.

2. Mechanisms Underlying the Dependence of the Auger Coefficient in 4H-SiC

The two dependencies described above originate from distinct physical pictures. The concentration dependence is primarily related to many-body interactions: at low concentrations, Coulomb interaction between carriers (Coulomb enhancement) increases the Auger recombination rate; when the concentration rises, this interaction is effectively screened by the free carriers themselves, leading to a decrease in C. This is consistent with phenomena observed in silicon. The temperature dependence is closely tied to the semiconductor band structure and phonon dynamics. For indirect bandgap materials like 4H-SiC, phonons play a key role in satisfying momentum conservation. Increased temperature strengthens this assisting process by increasing the phonon population.

3. Implications for Device Design and Performance

These new insights into the dynamic characteristics of the Auger recombination coefficient provide important guidance for the design and performance evaluation of 4H-SiC bipolar power devices.

Revised Performance Limit Predictions: Early studies often treated C as a constant (~5-7×10⁻³¹ cm⁶ s⁻¹). The new research shows that under high injection (N > 5×10¹⁸ cm⁻³), the actual value of C is smaller. This implies that under high carrier injection conditions, the theoretical carrier lifetime of devices may be longer than previously predicted, offering potential optimization space for further reducing on-resistance through conductivity modulation.

Guidance for Device Structure Optimization: In devices like PIN diodes, heavily doped “recombination-enhancing layers” or “field-stop layers” are often designed between the drift layer and the substrate to improve electric field distribution or suppress defect expansion. The new study clarifies that within such regions, the Auger recombination coefficient increases significantly with operating temperature. Therefore, the temperature dependence of C must be incorporated into device simulation and reliability design to more accurately assess carrier recombination loss and heating under high-temperature, high-current operating conditions.

Re-evaluation of Trap Influence: Studies confirm that even with high trap concentrations, the enhancement of C by TAAR is negligible. This suggests that process-induced damage or irradiation defects, while severely affecting carrier lifetime via the SRH channel, may not significantly alter the coefficient of the Auger process itself. This aids in more clearly separating the contributions of different recombination mechanisms during device failure analysis.

These findings update the understanding of non-radiative recombination physics in 4H-SiC under high-injection conditions and provide more precise key parameters for developing high-performance, high-reliability SiC bipolar power devices. Future research could further explore the variation of the Auger recombination coefficient across wider doping ranges, different doping types (e.g., heavily p-type doped), and at higher temperature intervals. Simultaneously, incorporating dynamic C values into device physics models will significantly enhance the simulation accuracy for 4H-SiC bipolar devices, particularly under extreme operating conditions, accelerating their innovative applications in future energy and power systems.

Whether you need SiC wafer for research or for industrial applications, please contact us email at [email protected] and [email protected].



References:

1. Tanaka, K., Nagaya, K., & Kato, M. (2023). 4H-SiC Auger recombination coefficient under the high injection condition. Japanese Journal of Applied Physics, 62(SC), SC1017.
2. Zhang, E., Matsuyama, H., & Kato, M. (2025). Auger recombination coefficient in heavily nitrogen-doped 4H-SiC under high-level injection conditions. Applied Physics Express, 18(9), 091001.
